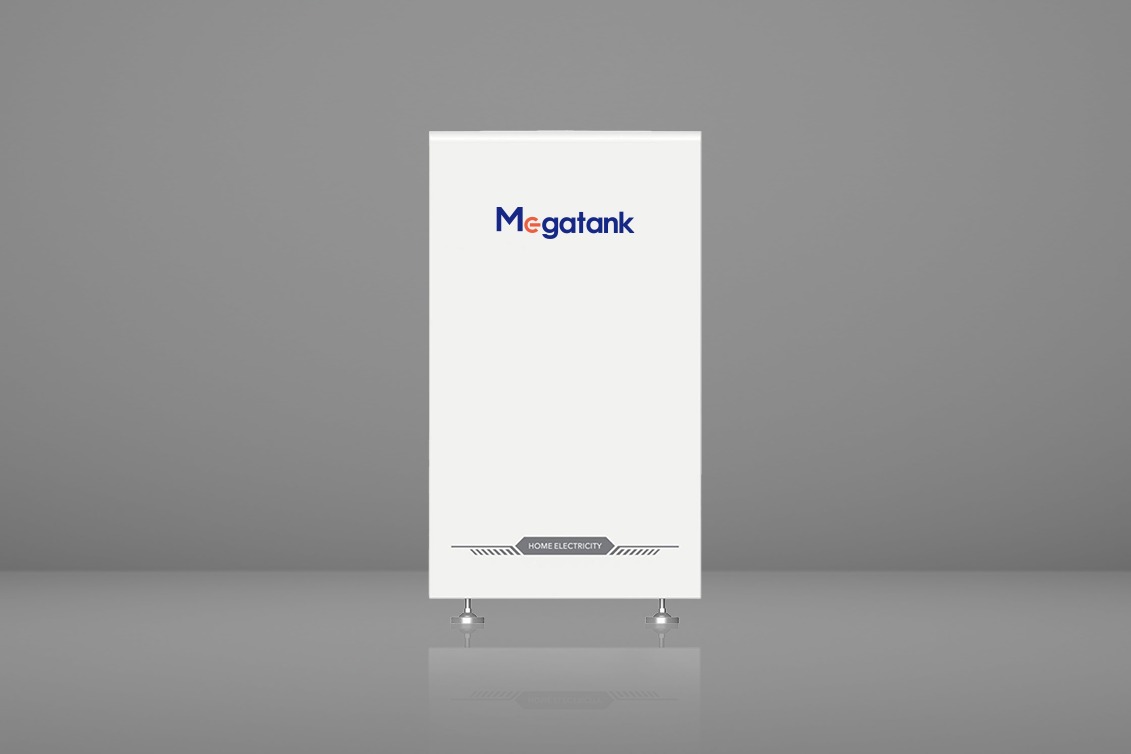

YT-P15K0WL2: 15kWh Scalable LFP Battery

Highlights

• LFP cell 3.2V314AH, 8000 cyles at 90% DOD
• Scalable, up to 16 units in parallel connection
• Smart BMS alarm & protection
• Compatible with most inverters on the market
• Modular design, dual terminal ports, easy & quick installation
• Built-in fire extinguisher (optional)

Specifications

• Cell type: LiFePO4
• Configuration: 15S1P
• Rated voltage: 48V
• Rated energy: 15.07kWh
• Operating voltage range: 42~54V
• Maximum depth of discharge (DOD) : 90%
• IP class: 20
• Cycle life: 8000 cycles (25±2°C, 0.5C/0.5C, 90%DOD, 70%SOH)
• Dimension (W×D×H): 500mm*240mm*860mm
• Net weight: 110kg
• Scalable (Max. units in parallel): Up to 16 units
• Built-in fire extinguisher: Optional
• Certificate: UN38.3

Download

You can find the required files on the Downloads page.

• Product Brochure
